JSK Scotchkote™ Separator

JSK - Industrial Scotchkote™ 134 Separator

Building off the industry tested and proven design of the LAKOS JPX Separator, the JSK Separator features an internal 3M™ Scotchkote™ 134 coating. The Scotchkote™ 134 coating makes the wetted surfaces of the Separator resistant to corrosive chemicals, wastewater, sea water, and hydrocarbons. The JSK removes up to 98% of particles 74 microns (2.4 SG) and larger in just a single pass, with minimal water loss and unit maintenance.

  • Economical Alternative to 316L Stainless Steel and Duplex Stainless Steel applications, providing similar results.
  • Superior Protection against corrosive liquids and substances like sea water.

Flow Range: 16 – 12,750 US gpm
Pressure Loss @ Rated Flow: 3 – 12 psid

Find a LAKOS Industrial Rep
IND REP LOCATOR
Potable Water Certified

A Scotchkote™ 134 coating is NSF/ANSI 61 certified for potable water applications.

Cost Effective Cog
Economical Alternative

Scotchkote™ 134 coated JSK Separators provide similar results of 316L and Duplex Stainless Steel products at a lower cost.

Chemical Resistance
Highly Resistant Coating

The JSK’s Scotchkote™ 134 coating is resistant to wastewater, hydrocarbons, harsh chemicals, and sea water.

3M Logo
3M™ Scotchkote™ Fusion-Bonded Epoxy Coating 134 is a one part, heat curable epoxy coating that can be custom applied to protect metal pipelines (external and internal) and a variety of infrastructure components from corrosion.

Scotchkote™ 134 is resistant to wastewater, corrosive soils, hydrocarbons, harsh chemicals, and sea water. It is commonly used in municipal water projects, protecting potable water infrastructure, sea water intakes, and ancillary equipment protection.

3M™ Scotchkote™ 134 is also an NSF/ANSI/CAN 61 Drinking Water Safe certified product. To view more about the NSF rating visit: info.nsf.org

See 3M™ Scotchkote™ 134 Data Sheet

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.



JSK Internal Scotchkote Coating

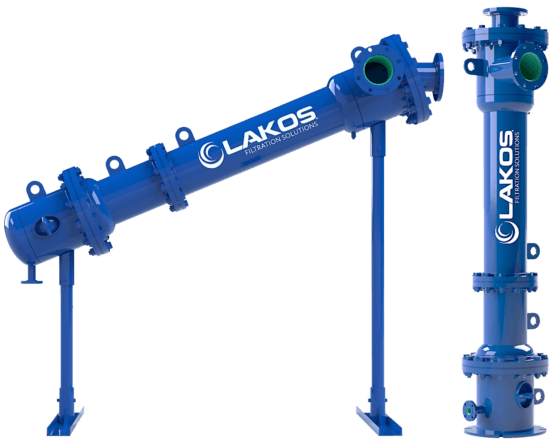

LAKOS JSK Separator with Internal Scotchkote™ 134 Coating



Specifications (JSK)

Models*
 Downloads
 Flow Range
 Inlet/ Outlet
 Purge Size
Male FLG		 Dry Weight
US GPM m3/hr lbs. kg
JSK-0016 DWG    PDF 16 – 30 4 – 7 1″ 1″ 101 46
JSK-0028 DWG    PDF 28 – 45 7 – 10 1-1/4″ 1-1/2″ 134 61
JSK-0038 DWG    PDF 38 – 65 9 – 15 1-1/2″ 1-1/2″ 183 83
JSK-0060 DWG    PDF 60 – 100 14 – 23 2″ 1-1/2″ 237 108
JSK-0085 DWG    PDF 85 – 145 19 – 33 2-1/2″ 1-1/2″ 350 159
JSK-0130 DWG    PDF 130 – 225 30 – 51 3″ 1-1/2″ 352 160
JSK-0200-L DWG    PDF 200 – 325 45 – 74 4″ 1-1/2″ 538 244
JSK-0200-V DWG    PDF 200 – 325 45 – 74 4″ 1-1/2″ 471 214
JSK-0285-L DWG    PDF 285 – 525 65 – 120 4″ 1-1/2″ 838 380
JSK-0285-V DWG    PDF
 285 – 525 65 – 120 4″ 1-1/2″ 745 338
JSK-0450-L DWG    PDF 450 – 825 102 – 187 6″ 1-1/2″ 1,034 469
JSK-0450-V DWG    PDF
 450 – 825 102 – 187 6″ 1-1/2″ 972 441
JSK-0650-L DWG    PDF 650 – 1,200 150 – 275 6″ 1-1/2″ 1,338 607
JSK-0650-V DWG    PDF 650 – 1,200 150 – 275 6″ 1-1/2″ 1,297 588
JSK-1160-L DWG    PDF 1,160 – 2,150 265 – 490 8″ 1-1/2″ 1,903 863
JSK-1160-V DWG    PDF 1,160 – 2,150 265 – 490 8″ 1-1/2″ 1,885 855
JSK-1850-L DWG    PDF 1,850 – 3,400 420 – 775 10″ 2″ 2,818 1,278
JSK-1850-V DWG    PDF 1,850 – 3,400 420 – 775 10″ 2″ 4,196 1,903
JSK-2650-L DWG    PDF 2,650 – 4,900 600 – 1,115 12″ 2″ 3,677 1,668
JSK-2650-V DWG    PDF 2,650 – 4,900 600 – 1,115 12″ 2″ 3,503 1,589
JSK-4200-L  DWG    PDF 4,200 – 7,800 950 – 1,775 16″ 3″ 5,783 2,623
JSK-4200-V  DWG    PDF 4,200 – 7,800 950 – 1,775 16″ 3″ 5,628 2,553
JSK-6700-L DWG    PDF 6,700 – 12,750 1,520 – 2,895  20″ 3″ 6,192 2,809
JSK-6700-V DWG    PDF 6,700 – 12,750 1,520 – 2,895  20″ 3″ 5,973 2,709

* Models ending with “L” are low profile; “V” for vertical profile
Note:
1. Maximum pressure rating: 150 psi (10.3 bar). For higher pressures, please Consult Factory.
2. Pressure Loss @ Rated Flow: 3 – 12 psid (0.2-0.8 bar).
3. Max temp. for NSF-61 rating is 140°F (60°C). Scotchkote™ 134 max temp. 180°F (82°C). For higher temps, please Consult Factory.



Dimensions (Vertical)

Models Dim A Dim B Dim C
inches mm inches mm inches mm
JSK-0016 33-1/4″ 845 25-1/16″ 637 6-1/4″ 159
JSK-0028 37-11/16″ 958 28-7/16″ 722 7-3/8″ 187
JSK-0038 40-1/4″ 1,022 30-3/4″ 781 8-3/8″ 213
JSK-0060 49-13/16″ 1,265 38-13/16″ 986 9-1/2″ 241
JSK-0085 60-5/16″ 1,532 49″ 1,245 11-3/8″ 289
JSK-0130 61-1/16″ 1,551 49-9/16″ 1,259 9-1/2″ 241
JSK-0200 74-3/8″ 1,889 62-1/8″ 1,578 11-1/2″ 292
JSK-0285 82-3/8″ 2,092 67-11/16″ 1,719 11-1/2″ 292
JSK-0450 101-1/8″ 2,568 86-1/16″ 2,186 13-1/2″ 343
JSK-0650 112-1/4″ 2,850 95-15/16″ 2,437 13-1/2″ 343
JSK-1160 133-1/16″ 3,379 113-5/8″ 2,885 15-1/2″ 394
JSK-1850 143-1/4″ 3,639 122-1/8″ 3,103 18-1/2″ 470
JSK-2650 158-1/8″ 4,016 134-7/16″ 3,415 20-1/2″ 521
JSK-4200 212-3/4″ 5,404 183″ 4,649 26-1/2″ 673
JSK-6700 251-1/16″ 6,376 218-1/2″ 5,550 30-1/2″ 775

Dimensions (Low Profile)

Models Dim A Dim B Dim C Dim D Dim E Dim F
inches mm inches mm inches mm inches mm inches mm inches mm
JSK-0200-L 71-1/2″ 1,817 64-1/8″ 1,629 31-5/8″ 803 66-13/16″ 1,697 40″ 1,016 11-1/2″ 292
JSK-0285-L 79-15/16″ 2030 71-1/8″ 1,807 31-5/8″ 803 81-5/8″ 2074 40″ 1,016 11-1/2″ 292
JSK-0450-L 88-1/16″ 2236 78-5/16″ 1,990 31-5/8″ 803 98-7/16″ 2501 40″ 1,016 13-1/2″ 343
JSK-0650-L 98-7/16″ 2500 84-3/16″ 2,139 31-5/8″ 803 110-15/16″ 2818 40″ 1,016 13-1/2″ 343
JSK-1160-L 110-7/16″ 2805 93-11/16″ 2,280 31-5/8″ 803 132-1/4″ 3359 40″ 1,016 15-1/2″ 394
JSK-1850-L 118-1/4″ 3003 99-15/16″ 2,539 32″ 813 144-3/8″ 3668 40″ 1,016 18-1/2″ 470
JSK-2650-L 126-15/16″ 3224 106-13/16″ 2,713 31-5/8″ 803 164-1/2″ 4178 60″ 1,524 20-1/2″ 521
JSK-4200-L 144-11/16″ 3676 123-7/16″ 3,136 31-1/2″ 800 200-11/16″ 5098 60″ 1,524 26-1/2″ 673
JSK-6700-L 168-5/16″ 4275 140-1/2″ 3,569 31-1/2″ 800 239-1/16″ 6072 60″ 1,524 30-1/2″ 775



  • Annular Transfer Ring
  • ASME Code Option
  • Bi-Sep & Tri-Sep
  • Custom Flanges
  • High Pressure
  • High Temperature (Up to 275°F/135°C)

Consult Factory for Additional Options

JSK Literature
  • LS-1063_JSK_Brochure
    File size: 317.69 KB
    Preview
  • LS-1069 JSK_sample_specs-CSI-B
    File size: 30.06 KB
Frequently Asked Questions

Answer: The JSK Separator takes a standard JPX Separator and builds off the industry proven design, featuring an internal Scotchkote™ 134 coating that is resistant to corrosive chemicals, sea water, and hydrocarbons.

Answer: A JSK Separators internal Scotchkote 134 coating can maintain its NSF-61 rating with temperatures reaching as high as 140°F (60°C) and reaches its maximum operating temperature at 180°F (82°C).

For higher temperatures please Consult Factory.

Answer: Flow rate is the most important factor in determining separator size because all LAKOS Separators operate within a prescribed flow range. Pipe size is not a factor in model selection so do not use your existing pipe size to determine the separator size. Required separator size is often, but not always, smaller than the existing piping, and appropriate hardware is used to match the inlet/outlet size with existing piping.

Answer: The LAKOS Separator is capable of working with any liquid that has a viscosity less than 100 SSU. The solids to be separated must also have a specific gravity at least 1.5 greater than the fluid. The greater the specific gravity of the separable solids and the lower the viscosity of the liquid, the better the LAKOS Separator will work. A good rule of thumb: if the solids settle within 3-4 minutes in your liquid, they will likely be separable with a LAKOS Separator.

Answer: No, the JSK uses a LAKOS Separator and is internally coated with a 3M Product on the wetted surfaces of the Separator, giving it increased resistance to corrosive chemicals and substances.
